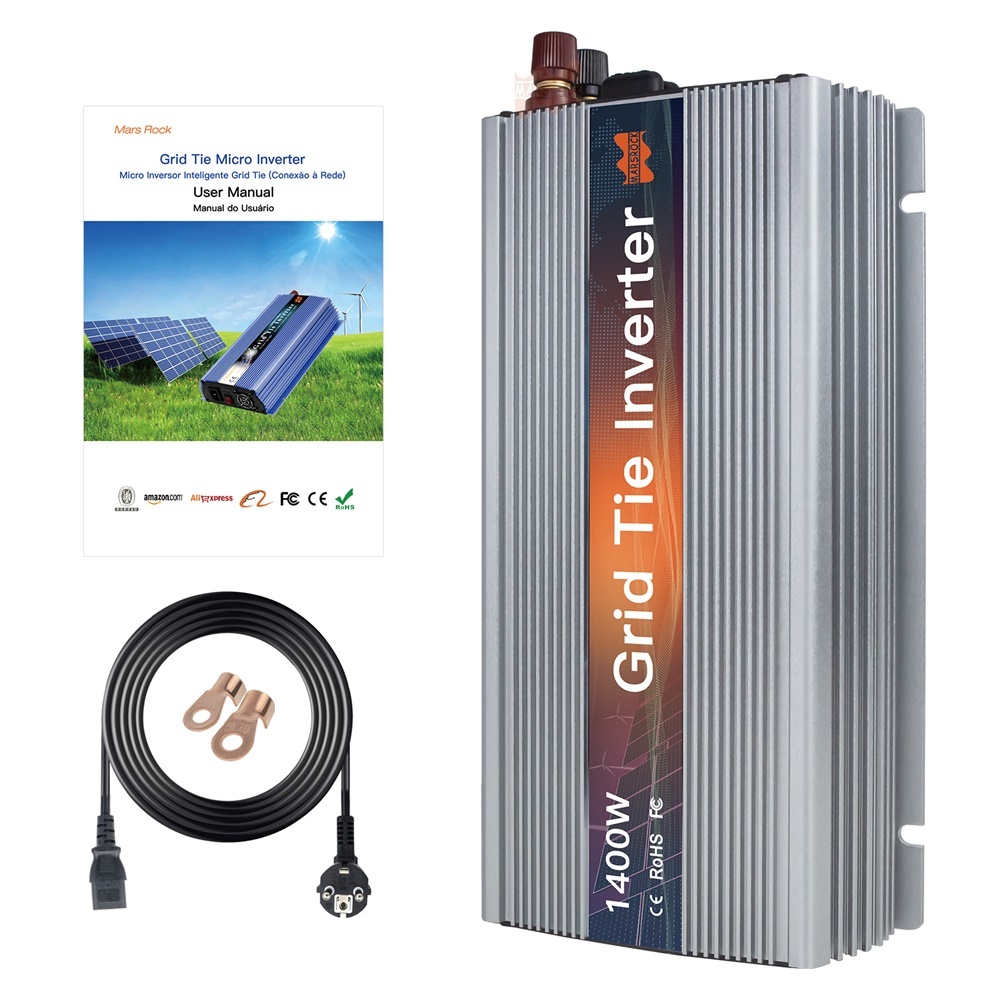

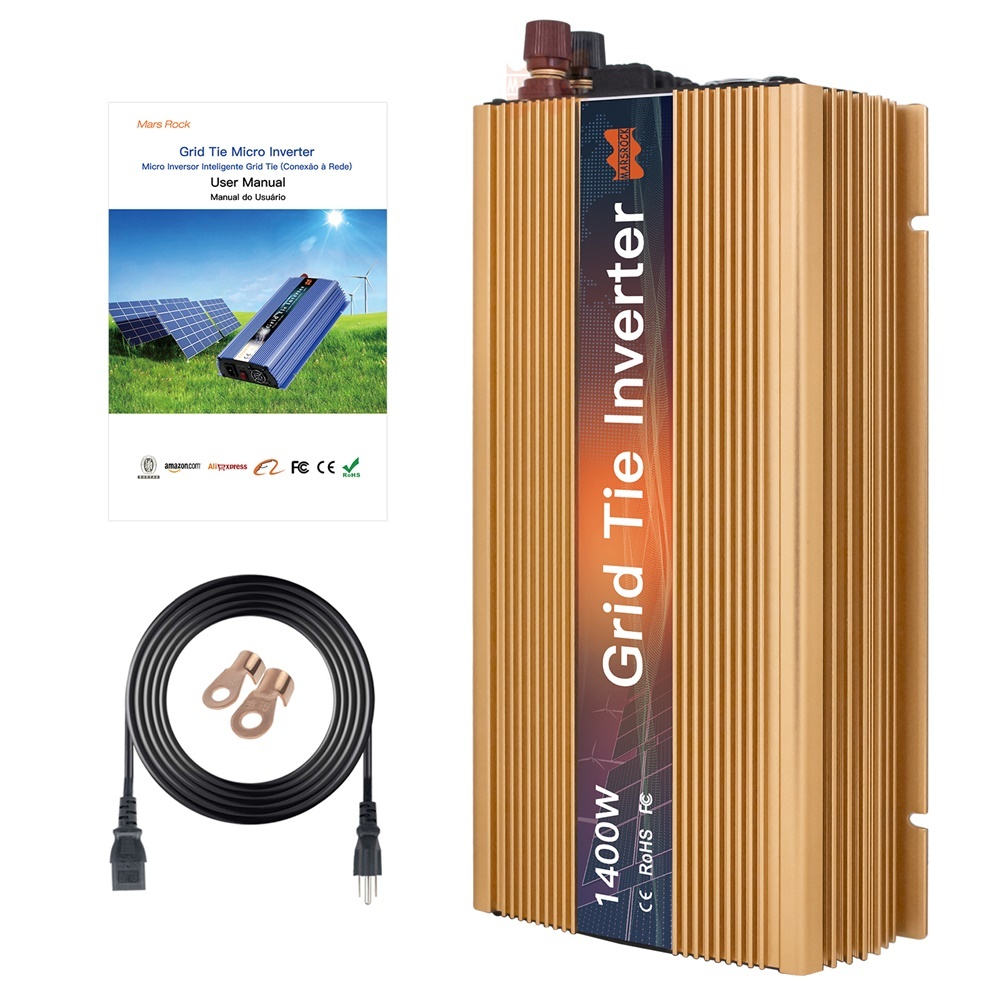

| Model | 1400W | |
| Suggest Solar | >1700W | |
| Max Output | 1400W | |
| Input Data | ||
| DC input | Vmp@18V(10.5-30VDC)/Solar cells=36 PCS per solar panel / MPPT Voltage: 18-21VDC; Vmp@36V(20-50VDC)/Solar cells=60/72 PCS per solar panel / MPPT Voltage: 24-45VDC |
|
| @18V | @36V | |
| Max Current | 87.5A | 56A |
| Output Data | ||
| Rated voltage | @120V(90-140VAC); @230V(190-260VAC) | |
| Auto match frequency: 50/60Hz(48-65Hz) | ||
| @120V | @230V | |
| Rated current | 12.7A | 6.4A |
| Output Efficiency | ||
| Efficiency | @120VAC Verstion | |
| @18V | @36V | |
| Peak Efficiency | 85% | 88% |
| Stable Efficiency | 83% | 86% |
| Efficiency | @230VAC Verstion | |
| @18V | @36V | |
| Peak Efficiency | 88% | 88% |
| Stable Efficiency | 83% | 86% |
| Stand-by Power | <1W | |
| Feature | ||
| Power Transmission | Reverse transfer, load priority | |
| Protection | 1. Islanding; 2. Short-circuit; 3. DC & AC low voltge; 4. DC & AC over voltage; 5. High temperature | |
| Grid distrubance | EN 50178/ EN 62109-1 /VDE 0126-1-12 | |
| EMC | EN 61000-6-3:2007 / EN 61000-6-1:2007 | |
| Grid detection | DIN VDE 1026/UL1741 | |
| Certificate | CE, ROHS, FCC | |
| Exterior | ||
| Operation | - 20℃ to +65℃ | |
| Humidity | 0% to 90% Non-condensing | |
| Waterproof | IP23(Indoor design) | |
| Showing | Luminous diode(LED) | |
| Cooling | Electric fan(>45℃) | |
| Net Weight | @1400W | |
| 2.2KGS | ||
| Gross Weight | 2.7KGS | |
| Size (LxWxH) | 39.5x21x11.5CM | |
