Produce Feature
|
Model
|
1000W
|
1300W
|
1400W
|
|||
|
Suggest Solar
|
>1200W
|
>1500W
|
>1700W
|
|||
|
Max Output
|
1000W
|
1300W
|
1400W
|
|||
|
Input Data
|
||||||
|
DC input
|
Vmp@18V(10.5-30VDC)/Solar cells=36 PCS per solar panel / MPPT Voltage: 18-21VDC;
Vmp@36V(20-50VDC)/Solar cells=60/72 PCS per solar panel / MPPT Voltage: 24-45VDC |
|||||
|
@18V
|
@36V
|
@18V
|
@36V
|
@18V
|
@36V
|
|
|
Max Current
|
62.5A
|
40A
|
81.5A
|
52A
|
87.5A
|
56A
|
|
Output Data
|
||||||
|
Rated voltage
|
@120V(90-140VAC); @230V(190-260VAC)
|
|||||
|
Auto match frequency: 50/60Hz(48-65Hz)
|
||||||
|
@120V
|
@230V
|
@120V
|
@230V
|
@120V
|
@230V
|
|
|
Rated current
|
9.1A
|
4.5A
|
11.8A
|
5.9A
|
12.7A
|
6.4A
|
|
Output Efficiency
|
||||||
|
Efficiency
|
@120VAC Verstion
|
|||||
|
Peak Efficiency
|
@18V
|
@36V
|
@18V
|
@36V
|
@18V
|
@36V
|
|
Stable Efficiency
|
85%
|
88%
|
85%
|
88%
|
85%
|
88%
|
|
Stable Efficiency
|
83%
|
86%
|
83%
|
86%
|
83%
|
86%
|
|
Efficiency
|
@230VAC Verstion
|
|||||
|
@18V
|
@36V
|
@18V
|
@36V
|
@18V
|
@36V
|
|
|
Peak Efficiency
|
88%
|
88%
|
88%
|
88%
|
88%
|
88%
|
|
Stable Efficiency
|
83%
|
86%
|
83%
|
86%
|
83%
|
86%
|
|
Stand-by Power
|
＜1W
|
|||||
|
Feature
|
||||||
|
Power Transmission
|
Reverse transfer, load priority
|
|||||
|
Protection
|
1. Islanding; 2. Short-circuit; 3. DC & AC low voltge; 4. DC & AC over voltage; 5. High temperature
|
|||||
|
Grid distrubance
|
EN 50178/ EN 62109-1 /VDE 0126-1-12
|
|||||
|
EMC
|
EN 61000-6-3:2007 / EN 61000-6-1:2007
|
|||||
|
Grid detection
|
DIN VDE 1026/UL1741
|
|||||
|
Certificate
|
CE, ROHS, FCC
|
|||||
|
Exterior
|
||||||
|
Operation
|
- 20℃ to +65℃
|
|||||
|
Humidity
|
0% to 90% Non-condensing
|
|||||
|
Waterproof
|
IP23(Indoor design)
|
|||||
|

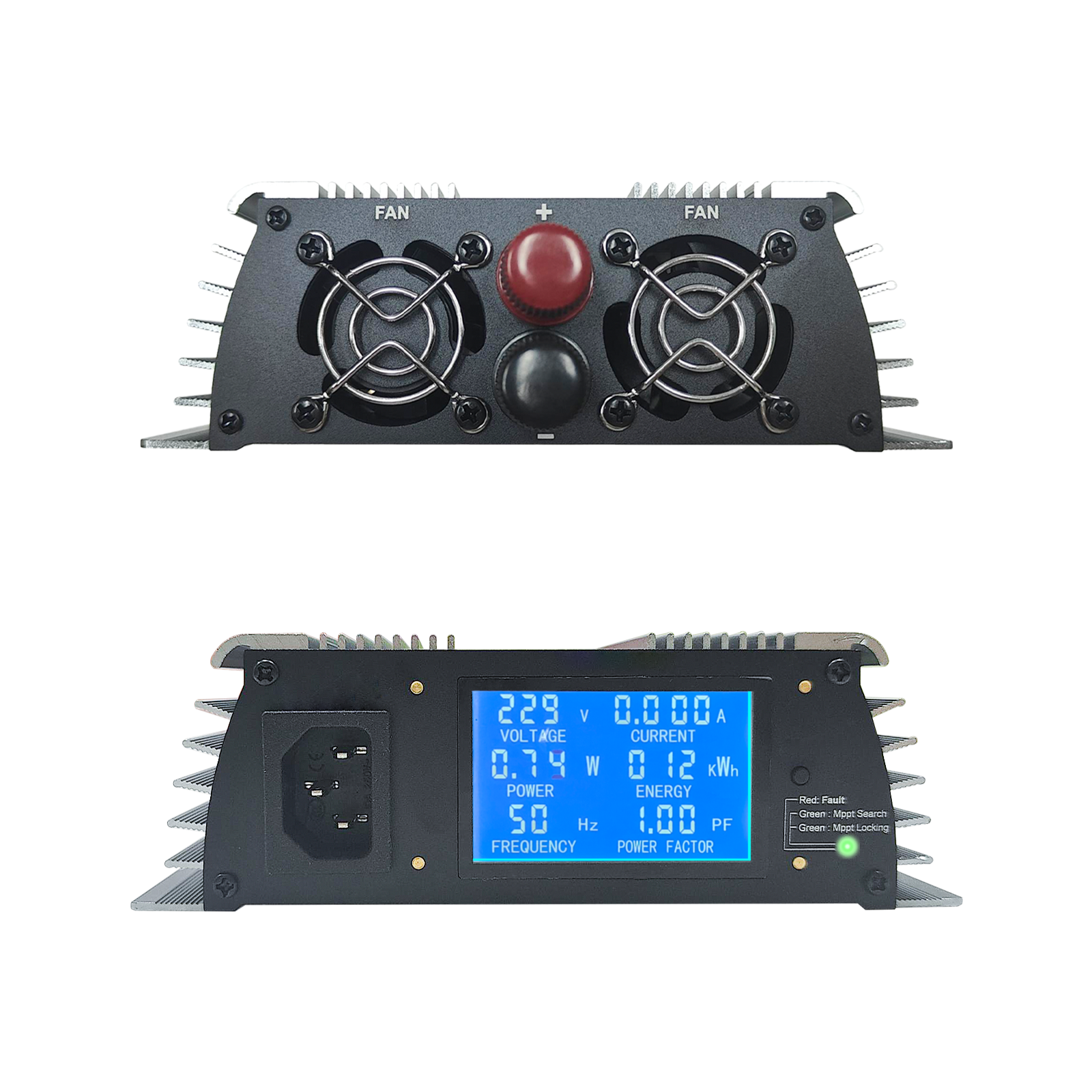

Showing
|
Luminous diode(LED)
|
|||||
|

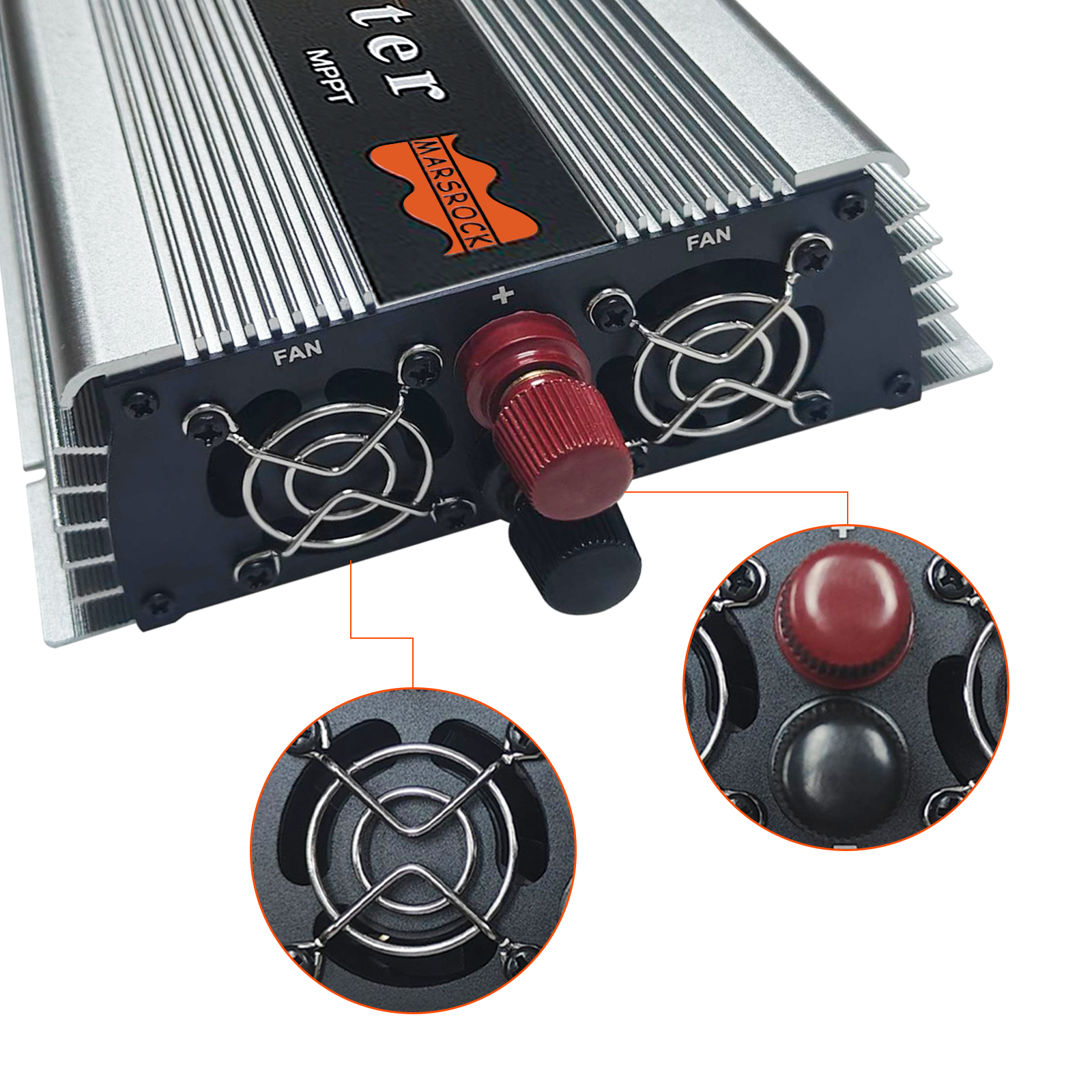

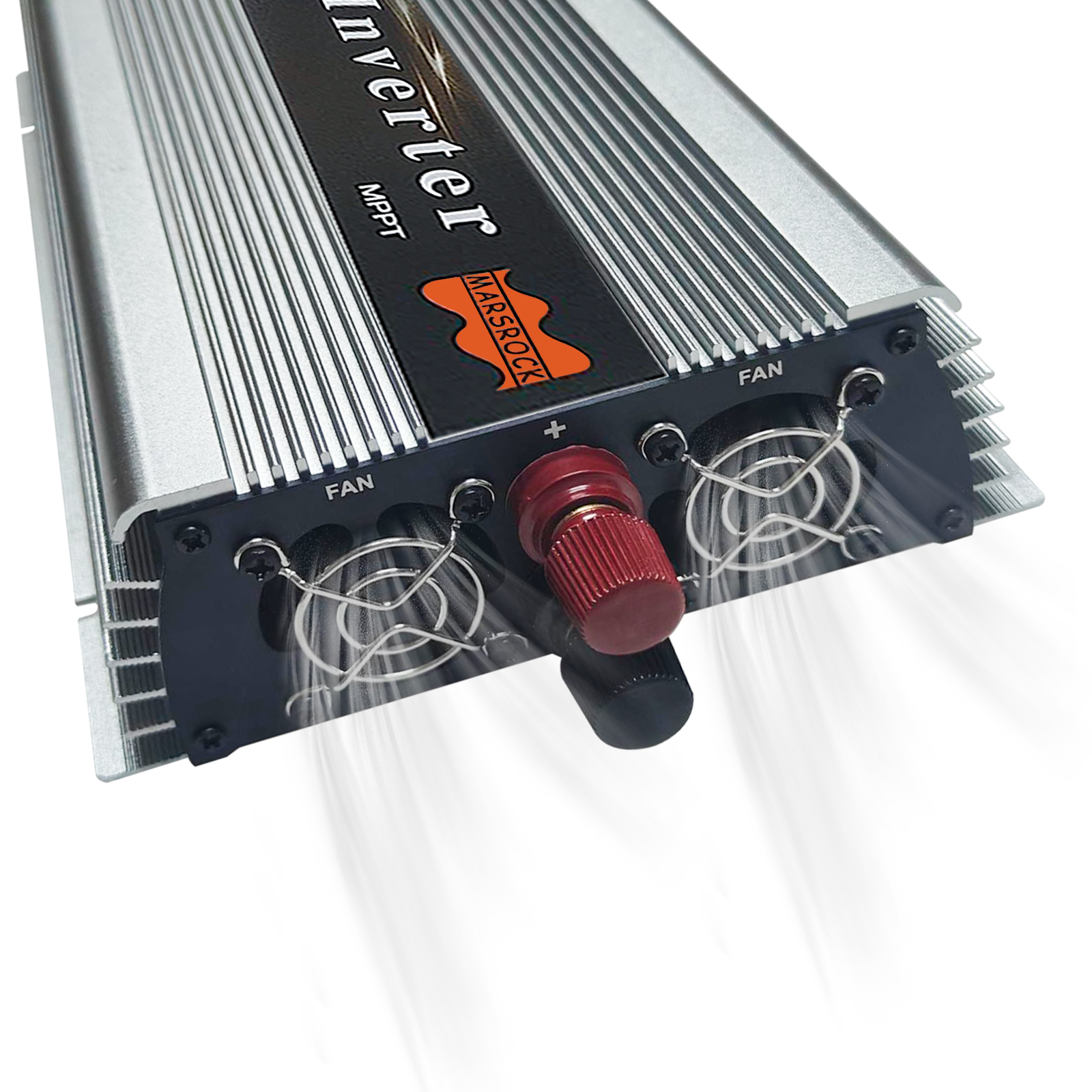

Cooling
|
Electric fan(>45℃)
|
|||||
|
Net Weight
|
1000W
|
1300W
|
1400W
|
|||
|
2.1KGS
|
2.2KGS
|
2.2KGS
|
||||
|
Gross Weight
|
2.6KGS
|
2.7KGS
|
2.7KGS
|
|||
|

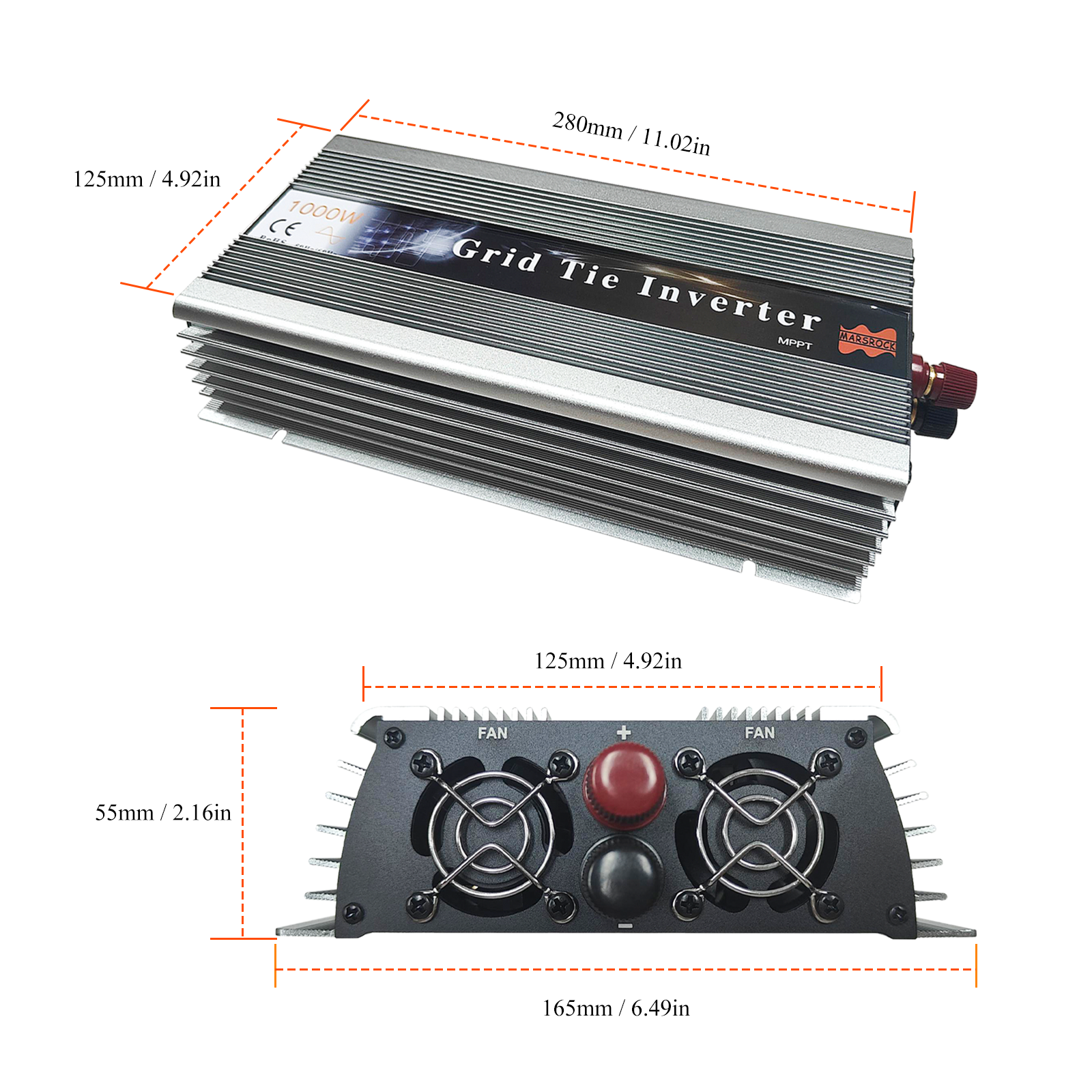

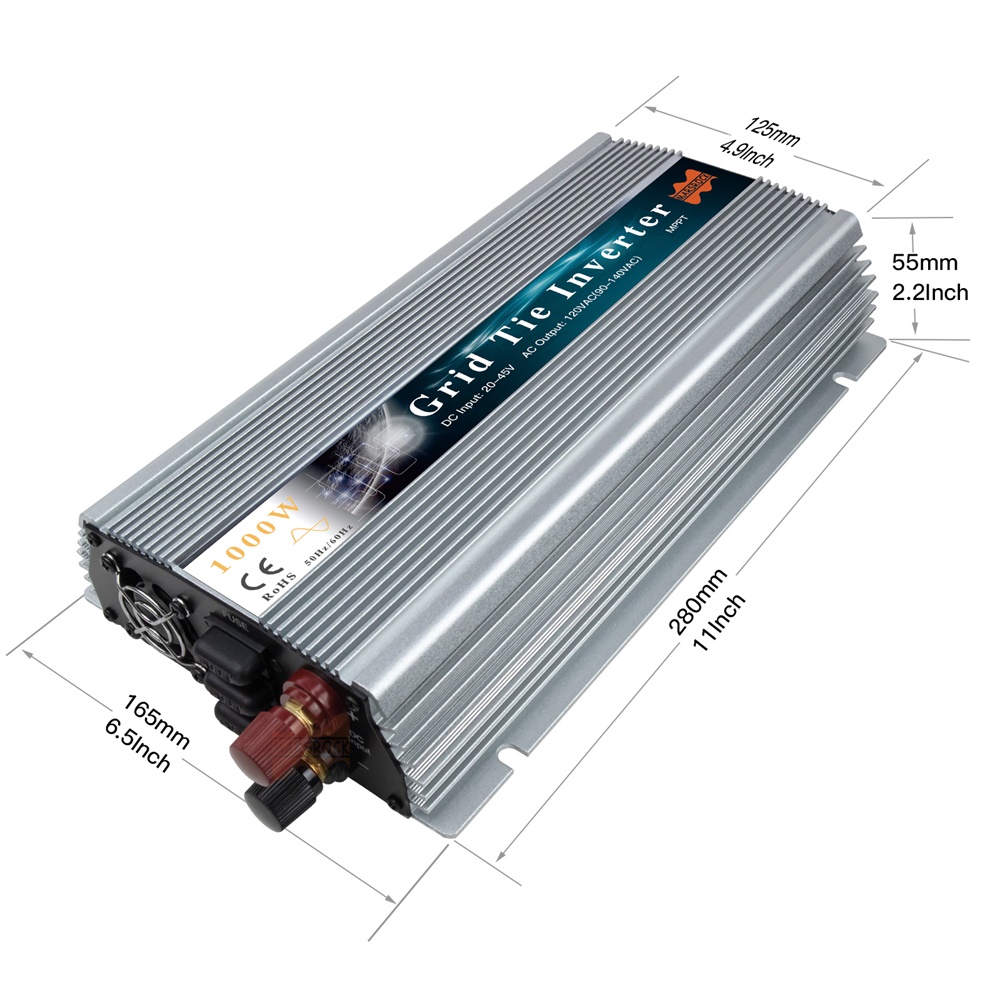

Size (LxWxH)
|
39.5x21x11.5CM
|
39.5x21x11.5CM
|
||||
